25W FM Stereo Transmitter LCD Modules

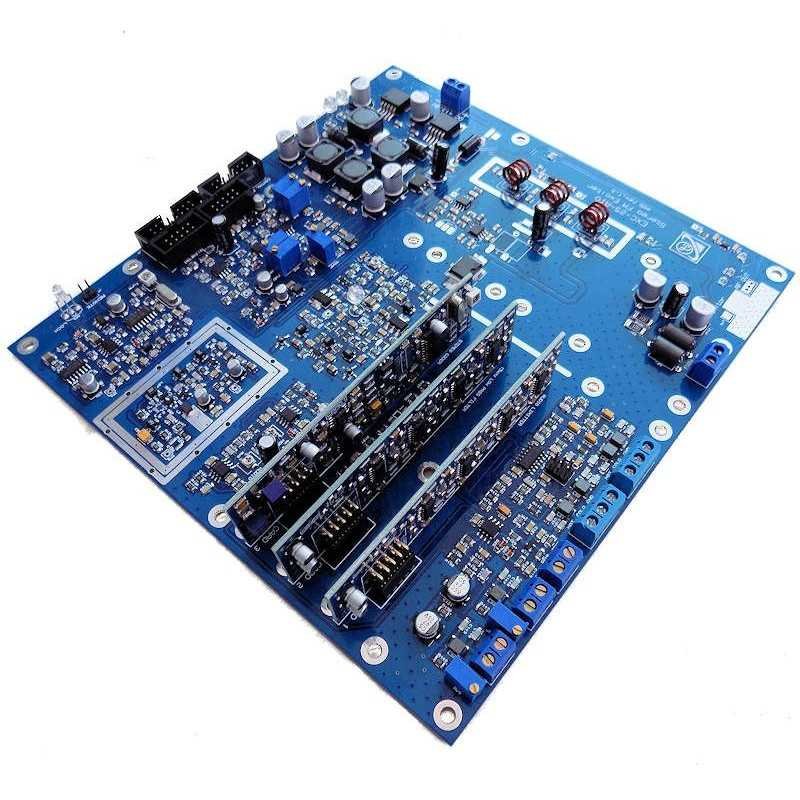

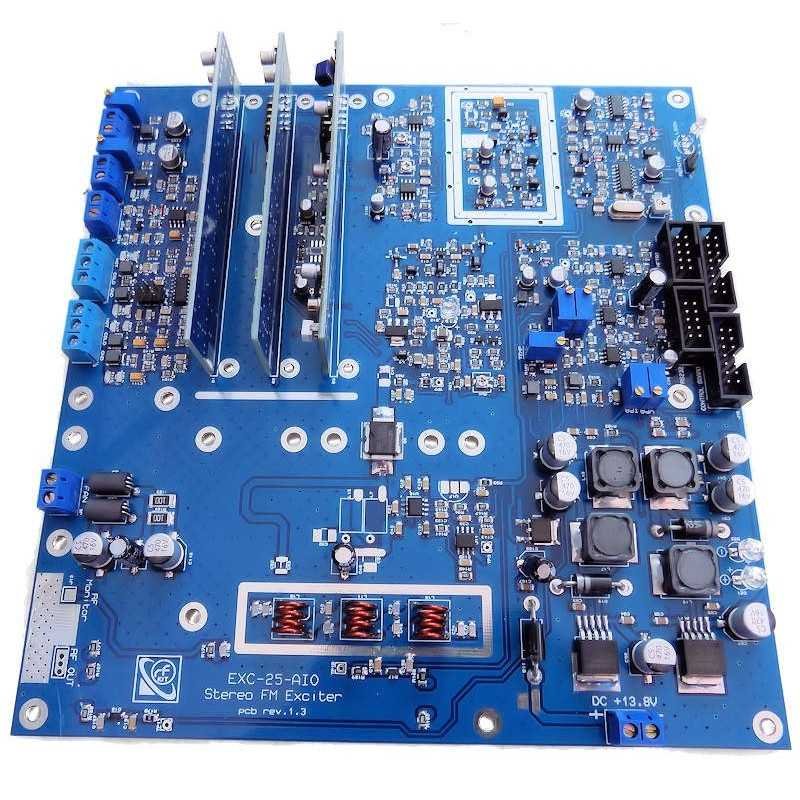

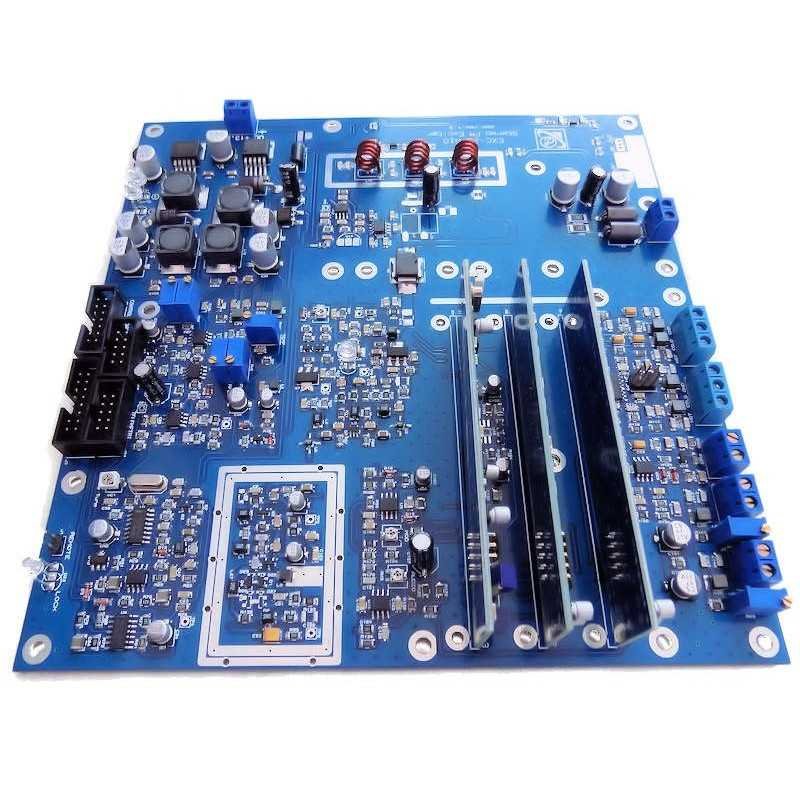

All in one 25W FM stereo transmitters modules by RF-Kit Electronics is equipped with a stereo card, 15kHz LPF card, and audio limitter card (optional). PLL systems with a 20X4 LCD display makes this transmitter kit appear attractive to meet the needs of low cost high quality FM transmitters.
All in one 25W FM stereo transmitter modules by RF-Kit Electronics is equipped with a stereo card, 15kHz LPF card, and audio limitter card (optional). PLL systems with a 20X4 LCD display makes this transmitter kit appear attractive. This FM stereo transmitter module is a solution of low price high quality FM transmitter product.
Technical specifications:
- RF Output Power: 0 to 25 Watts (max)
- Frequency range: 87.5-108MHz (76-108MHz on request)
- PLL Steps: 50KHz
- Frequency stability: +/- 20Hz
- Spurious/Harmonic rejection: Harmonics: >50dB
- Power Supply: 12-15V/3A
- Quartz Locked PLL Frequency Control
- Ultra Stable, Ultra Clean Output
- No Expensive Test Equipment Required
- Audio performance: Less than 0.5% distortion, 20Hz-75KHz
- RF output ruggedness: SWR protection
- Output Impedance: 50 Ohms
- Polarity protection, temp protection
- Pre-emphasis, 50uS, 75uS or none
- PC Board Size: 20x20cm
- Audio connectors: terminal connector
